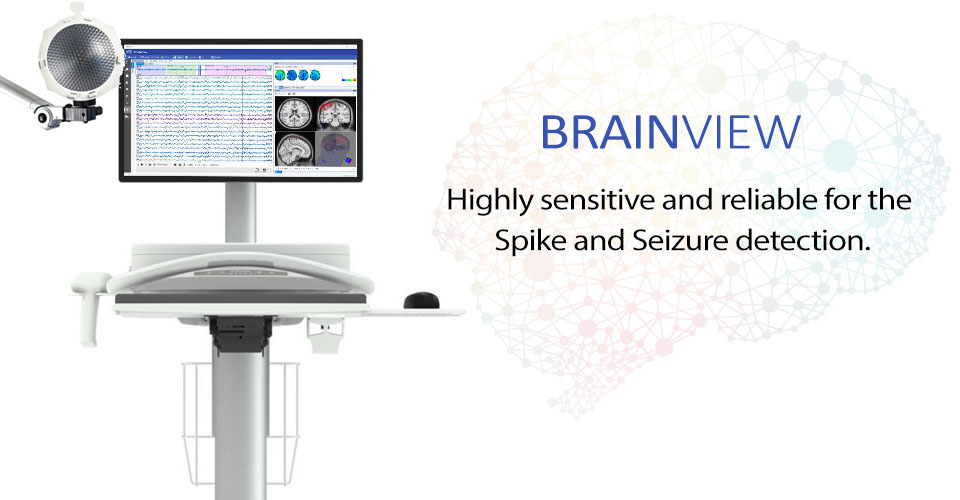

BrainView EEG Pro System

Routine Clinical EEG System

The BrainView EEG Pro devices are designed to ensure most efficient and simple day-to-day workflow due to an easy operation at routine EEG studies, advanced software with multiple analysis options and easily customizable interface.

Device Specification

  • High-quality 21 or 64 channel EEG
  • 3 ECG channels
  • 4 EMG channels
  • Up to 4000 Hz sampling rate
  • 16 or 24 bits resolutions
  • Photic Stimulator
  • SpO2 and PPG (photoplethysmography)
  • Event Button
  • Wi-Fi and USB Connectivity

BrainView EEG Pro Advantages

High-quality EEG Acquisition
The high sampling rate (up to 4000 Hz) allows recording EEG signal in full frequency band without certain "swallowing "of sharp EEG components or abrupt amplitude reduce.
With the low noise level, the most spare EEG filtration is applied or the filtration is not done at all that saves maximum useful information in the raw signal.

Operation in Unshielded Room
The digital BrainView EEG Pro EEG systems can be used in any unshielded room saving considerably the specialist's workplace preparation costs, increasing the staff's operation convenience and ensuring patient's comfort.

Impedance Indication on EEG System
Often the digital EEG system and the computer to process and analyze the obtained signals are located in neighbor rooms or even far from each other.
The impedance indicators on the front panel allow monitoring the signal quality during the electrode placement staying near a patient.

Socket to Attach the Electrode Cap
No adapters or other facilities are required to connect the electrode cap. Just plug it in a standard EEG system socket.

ERP Custom Simulation Procedure
The P300, visual, auditory, photic and pattern stimulators are designed to perform different stimulation procedures during EEG test and also record long-latency and cognitive evoked potentials.

BrainView EEG Pro Software Components

BrainView EEG Pro Digital EEG systems are modern high-tech electronic medical devices of high quality satisfying the most exacting requirements of wide circle of the customers starting from doctor in clinics and up to neurophysiologist-researcher.

High quality of EEG recording is achieved due to hardware and software solutions.

The mathematical processing of the received data includes brain mapping, spectral, coherent, periodometrical correlation analysis and automatic report generation.

BrainView EEG Pro Digital EEG systems can be supplied with the following options: neuro-functional study, Dipole software for 3D localization, evoked potentials study, heart rate variability study, external unit for SpO2 and respiration recording.

BrainView EEG Pro aEEG software allows aEEG calculating and displaying. It's applied in neonatology for early detection, diagnostics of the neonatal central nervous system (CNS) abnormalities and assessment of the brain maturation in premature infants. The 24-hour cerebral function monitoring is intended for the premature neonates with birth injuries or with CNS abnormalities. The cerebral function monitoring can be prescribed to adults, often the monitoring of comatose patients is performed to assess the CNS state.

BrainView EEG Pro LEP software component allows recording long-latency auditory, visual (on flash and pattern), somatosensory and cognitive (P300, MMN, CNV) using EEG channels (up to 21 ones) with brain mapping.

BrainView EEG Pro Dipole software component is intended for 3-D dipole localization of pathological activity sources when suffering from epilepsy, injuries, insults, neoformations, and also localization of evoked potentials sources, wave patterns, rhythmic activity generators. It is recommended to use digital EEG systems with the number of channels not less than 16. The visualization of localization results is performed on three head views, diagrammatic sectional views of the brain structures.

BrainView EEG Pro LORETA software component (Low Resolution Brain Electromagnetic Tomography) is the popular and reliable tool for 3D representation of the electrical activity of human brain.

BrainView EEG Pro Photic Stimulator provides important information to diagnose neurological diseases such as Epilepsy. With the NeuralScan photic stimulator, users can variably define the stimulation frequency (0 to 60 Hz), flash number and rest times.

BrainView EEG Pro Seizure Detection utilizing the latest deep learning artificial intelligence technology and thousands of hours of expertly marked EEG.

BrainView EEG Pro Spike Detection Highly reliable and easy to review. Do your patient's EEGs show epileptiform discharges? How often do they occur? Get a reliable answer to these important questions within minutes.

Request Information

BrainView EEG Pro EEG Recording

The BrainView EEG Pro software provides the EEG recording on any digital BrainView EEG Pro EEG system by 9,21,32,64 channels (up to 64 digital derivations).

During the recording monopolar, bipolar or mixed montages in "10-20" and "10-10" schemes can be used.

The montage can be switched at any moment: before the recording, during the recording, in the process of EEG review and analysis after the recording.

It is possible to set different parameters for the different channels. For example, if you cannot delete the trend of EEG isoline in frontal derivations, you can specify the more high values of high pass filter only for these derivations. You can change the parameters of any channel in the process of the recording.

In split-screen mode you can observe the process of the recording in one part of the screen and review the recorded EEG in the other one.

The software allows performing the functional tests which are standard for EEG checkups (photic stimulation, auditory stimulation, hyperventilation, eyes opening). Besides, you can perform other functional tests of any duration and in any sequence.

The flexible possibilities of stimulators programming are available.

You can watch the process of EEG recording both from the computer connected to the digital EEG system or computer connected to the same local network. After EEG recording termination, EEG can be reviewed in the “as recorded” mode as if it emulates the paper record.

BrainView EEG Pro EEG Analysis

The records can be analyzed with the use of the most modern techniques of mathematical analysis. Any fragment of the record or the whole record (with the division on epochs) can be processed.

As far as the digital EEG systems of BrainView EEG Pro allow EEG recording not only in 35 Hz standard range but also in the wider frequency range, then not only standard ranges (alpha, beta, delta and theta) but also any ranges specified by the user can be analyzed at spectral analysis.

Brain Mapping. The software allows mapping of practically any parameter: EEG amplitude and spectrum power in the whole frequency range, EEG amplitude and spectrum power in the specified frequency ranges, rhythm index, etc.

Search of spikes and sharp waves is done automatically. In the result of search the software provides the list of the detected phenomena and mapping of these phenomena distribution on scalp.

The software provides the possibility of EEG coherent and cross-spectral analyses performing and coherence maps generating.

After EEG mathematical analysis the software allows creating the automatically generated EEG description in checkup report. Besides, the doctor can edit the report at her/his discretion, add any pictures and graphs. At that you can use structured comprehensive glossary which can be enlarged.

BrainView EEG Pro Trends software allows to display trends of spectrum components, EEG indexes, amplitude parameters of signals, HR, number and amplitude of epileptiphorm activity phenomena, etc. in any selected derivations.

Request Information

Biomarkers to aid for earlier detection of memory loss and dementia.
